About us
Putzmeister is a leading global manufacturer of construction machinery, specializing in equipment for pumping, distributing, and placing concrete, mortar, and high-density solids. Founded in 1958 by Karl Schlecht, the company has grown from a small operation into an international leader in concrete technology, known for its high-quality German engineering, reliability, and innovation.
Products
Putzmeister develops, produces, and sells machinery that enhances productivity on job sites, including:
Truck-Mounted Concrete Boom Pumps: Ranging from versatile units to massive, high-reach pumps.
Stationary Concrete Pumps: Suitable for high-rise projects and specialized applications.
Telebelts: Mobile telescopic belt conveyors for versatile material placement.
Industrial Technology: Solutions for mining, tunneling, and transporting industrial solids.
Mortar and Plastering Machines: Equipment for plastering, grout, and fireproofing.
Truck Mixers: For transporting concrete.
Address
Estrada Municipal do Mingú 1407
CEP 12952 720 Atibaia / SP
Brazil
E-mail: diego.maximino@putzmeister.com
Phone: +55 11 4416-6200
Internet: putzmeister.com
AV. GOV. JOSÉ MALCHER 168
Ed. Emp. Bolonha, sala 110
66040-281 BELÉM
Brazil
E-mail: bertram.heinze@innovbrazil.com
Phone: +55 91 981111762
Internet: www.innovbrazil.com
Contact person:
Bertram Heinze
Putzmeister Industrial Technologies Brazil
E-mail: bertram.heinze@innovbrazil.com
Phone: +55 91 98111-1762
Products & Services
Products
Putzmeister develops, produces, and sells machinery that enhances productivity on job sites, including:
Truck-Mounted Concrete Boom Pumps: Ranging from versatile units to massive, high-reach pumps.
Stationary Concrete Pumps: Suitable for high-rise projects and specialized applications.
Telebelts: Mobile telescopic belt conveyors for versatile material placement.
Industrial Technology: Solutions for mining, tunneling, and transporting industrial solids.
Mortar and Plastering Machines: Equipment for plastering, grout, and fireproofing.
Truck Mixers: For transporting concrete.

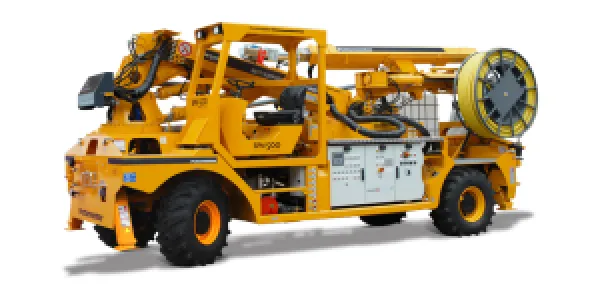

SPM 500 Wetkret
Proven efficiency and reliability in countless tunnel projects around the world.

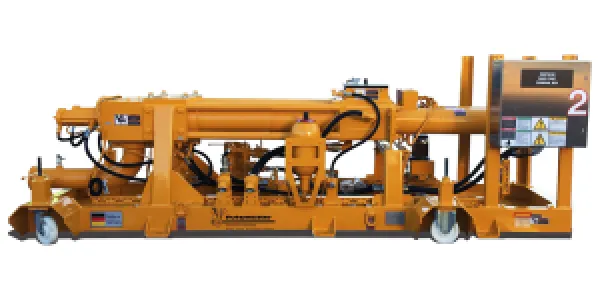

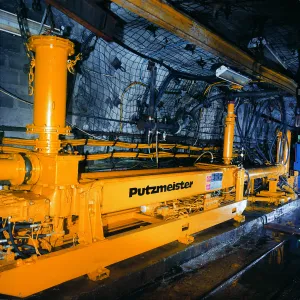

HSP piston pump with seat valves
It transports highly viscous materials with a low content of foreign matter.
Flow rate
25-400 m³/hr
Pressure
70-150 bar
Stroke length
Up to 2500 mm
Cylinder volume per stroke
Up to 523 l
Length x Width x Height
Up to 9500 x 2400 x 2100 mm
Weight
Up to 32000 kg

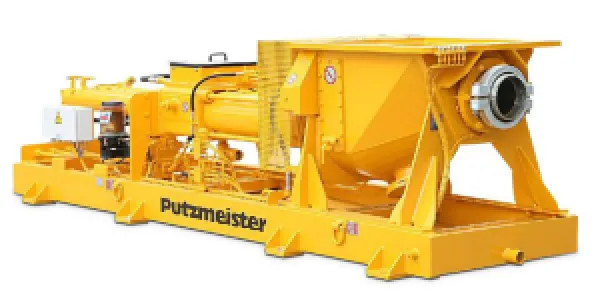

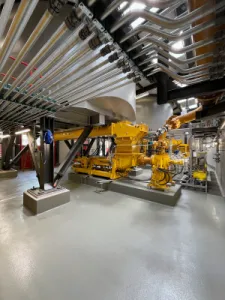

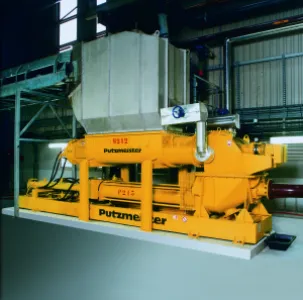

KOS S-Transfer Piston Pump
Piston Pump with S-Transfer Tube
The Putzmeister-KOS pump is a valveless, two-piston pump for conveying thick media with a high solids content. The pump unit consists of a robust pump hopper for reliable material feeding, two discharge cylinders with one piston each, and a tube called S-Transfer for connecting the discharge cylinders to the production flange.
Flow Rate
16-385 m³/hr
Pressure
30-120 bar
Material Cylinder Diameter - Stroke Length
150-560/700-2500 mm
Weight
1000-32000 kg

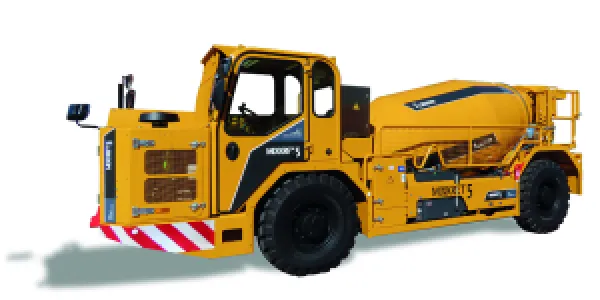

Mixkret 5
Compact, Strong, and Versatile to Improve the Overall Concrete Spraying Process in Mining Applications
With a 5 m³ concrete capacity, the Putzmeister Mixkret 5 complements the series of low-profile concrete mixers. The machine is equipped with a 168 kW diesel engine with ICDV (Integrated Continuous Speed Variator) to fully utilize the engine power at any time, without interruptions in traction force.
Length x Width x Height
7340 x 2200 x 2500 mm
Weight
10500 kg
Ground Clearance
320 mm
Wheelbase
4000 mm
Maximum longitudinal inclination during driving
30%
Maximum transverse gradient During driving
10%
Inner turning radius
2400 mm
Outer turning radius
6000 mm
Engine
Diesel
Engine power
168 / 150 kW
Emission stage
EU-Stage III A / EU-Stage V
Max. speed
20 km/hr
Diesel tank
265 l
Max. concrete capacity
5 m³
Adjustable rotation speed in both directions
0-18 rpm
Concrete discharge weight
1066 - 1403 mm
SPM 715 Synchro
Concrete pump for shotcrete with synchronized admixture dosing system
The SPM 715 Synchro is equipped with a hydraulic admixture dosing unit that controls the concrete flow and can be managed with a PLC system. The peristaltic admixture pump delivers a output of 40 to 400 l/h, with pumping values immediately displayed on the PLC screen.
The machine is available as a stationary (SD) or trailer-mounted (TD) pump. With its road-accessible chassis, transport and maneuvering on the construction site couldn't be easier.
Pressure
68 bar
Material Cylinder Diameter - Stroke Length
150/700 mm
Cycles
27
Maximum Aggregate Size
16 mm
Hopper Capacity
250/280 l
