Piston Pump with S-Transfer Tube

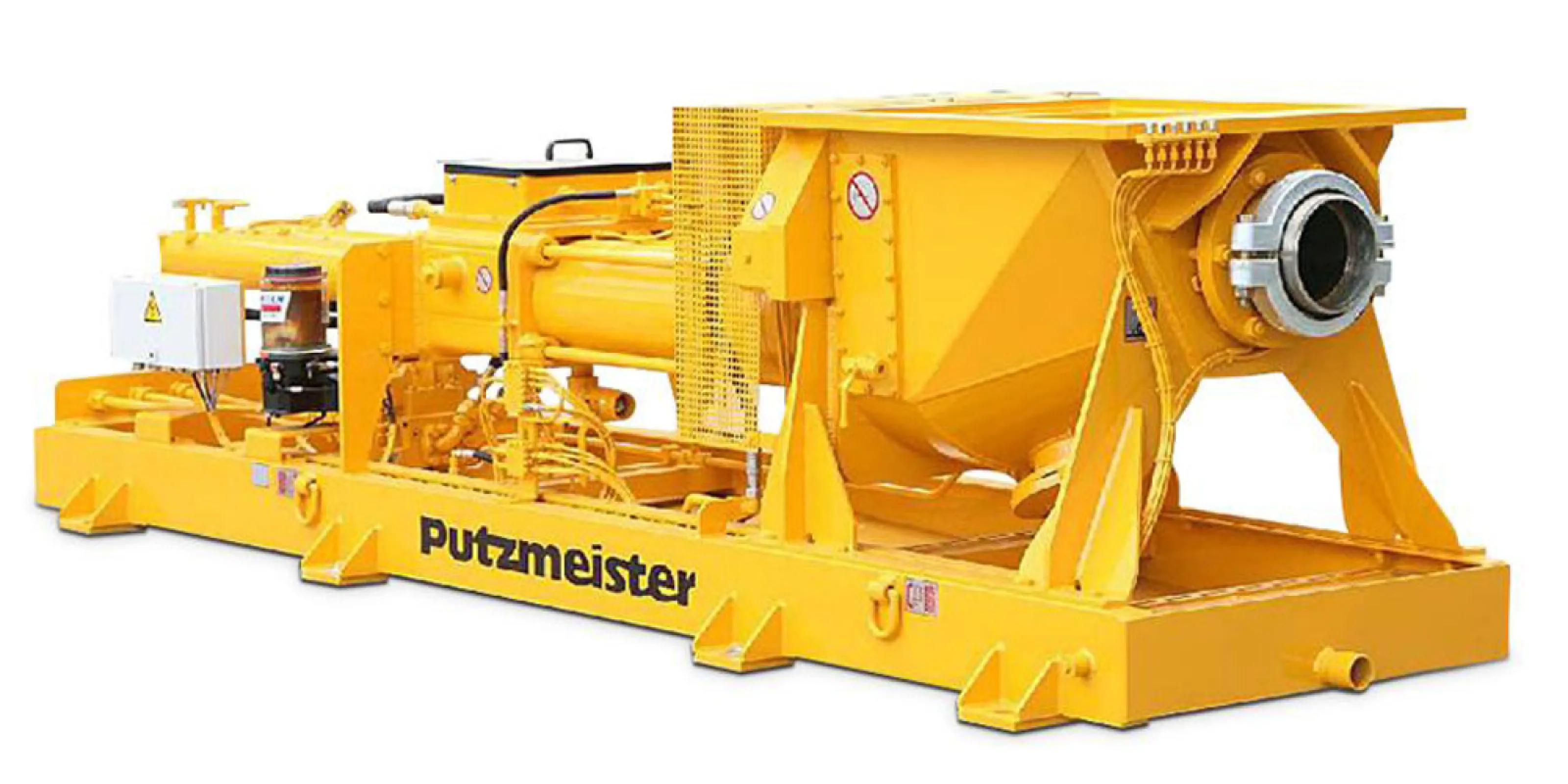

The Putzmeister-KOS pump is a valveless, two-piston pump for conveying thick media with a high solids content. The pump unit consists of a robust pump hopper for reliable material feeding, two discharge cylinders with one piston each, and a tube called S-Transfer for connecting the discharge cylinders to the production flange.

Flow Rate

16-385 m³/hr

Pressure

30-120 bar

Material Cylinder Diameter - Stroke Length

150-560/700-2500 mm

Weight

1000-32000 kg
