Compact, Strong, and Versatile to Improve the Overall Concrete Spraying Process in Mining Applications

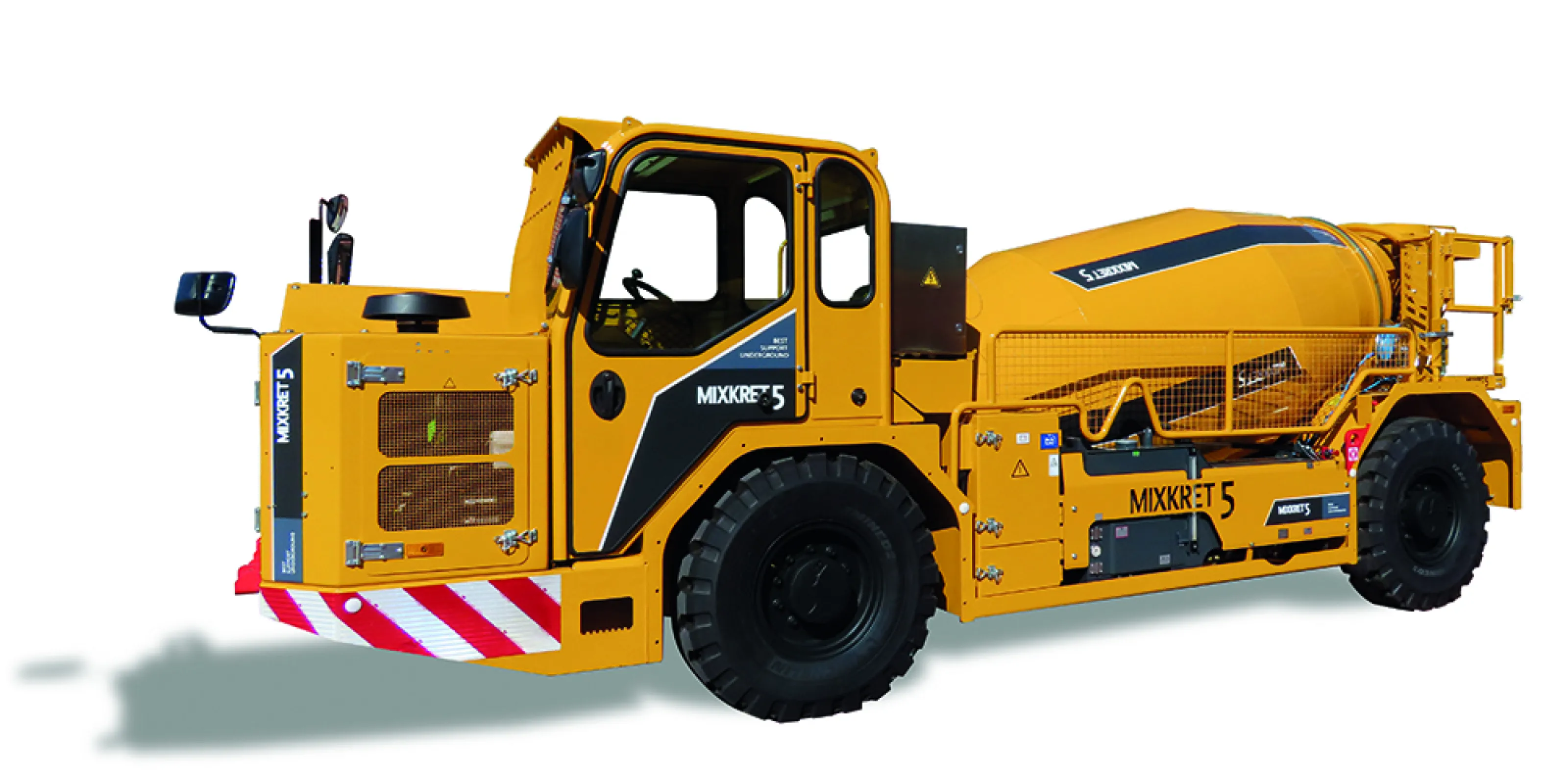

With a 5 m³ concrete capacity, the Putzmeister Mixkret 5 complements the series of low-profile concrete mixers. The machine is equipped with a 168 kW diesel engine with ICDV (Integrated Continuous Speed ​​Variator) to fully utilize the engine power at any time, without interruptions in traction force.

Length x Width x Height

7340 x 2200 x 2500 mm

Weight

10500 kg

Ground Clearance

320 mm

Wheelbase

4000 mm

Maximum longitudinal inclination during driving

30%

Maximum transverse gradient During driving

10%

Inner turning radius

2400 mm

Outer turning radius

6000 mm

Engine

Diesel

Engine power

168 / 150 kW

Emission stage

EU-Stage III A / EU-Stage V

Max. speed

20 km/hr

Diesel tank

265 l

Max. concrete capacity

5 m³

Adjustable rotation speed in both directions

0-18 rpm

Concrete discharge weight

1066 - 1403 mm
