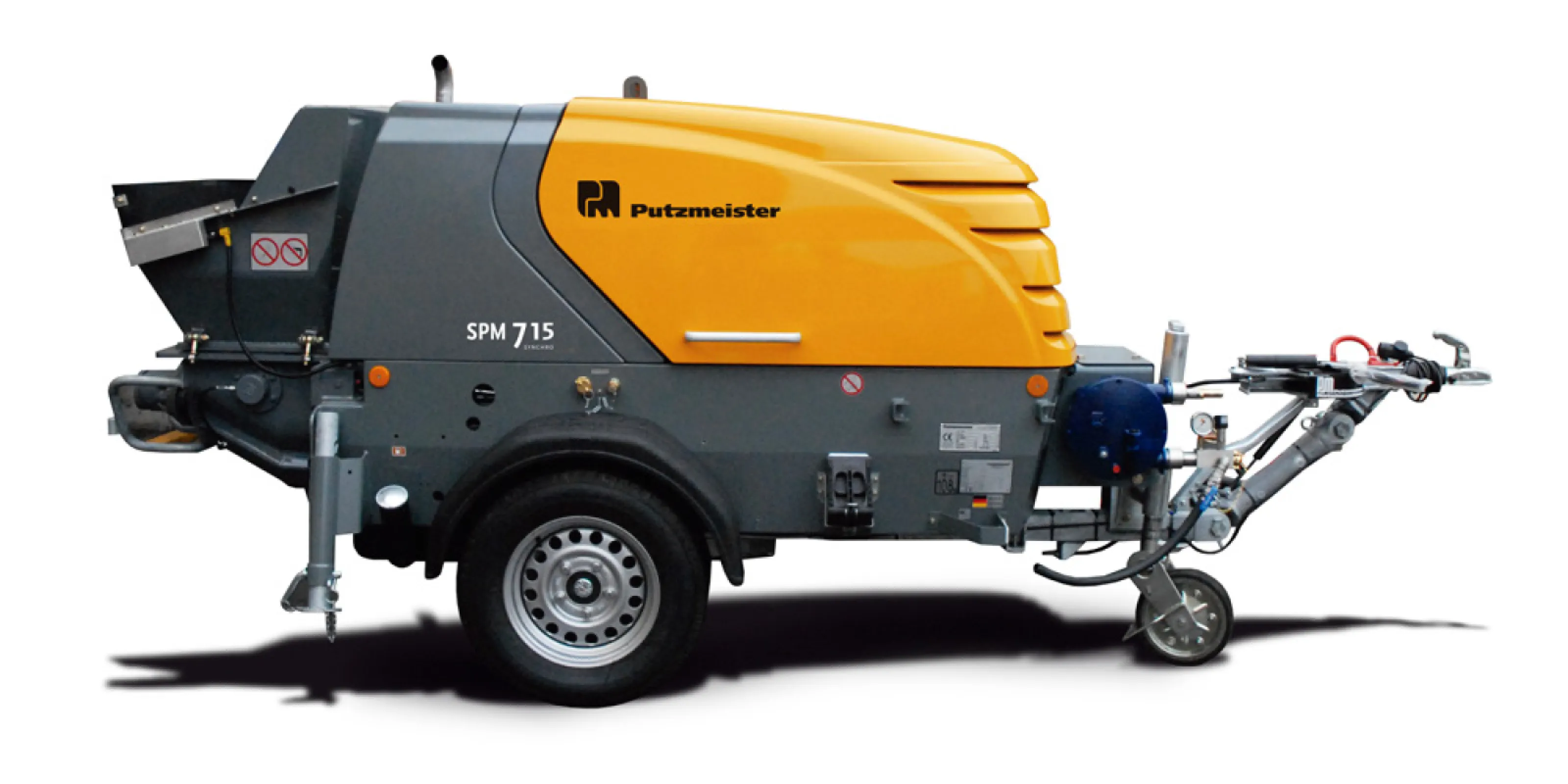

Concrete pump for shotcrete with synchronized admixture dosing system

The SPM 715 Synchro is equipped with a hydraulic admixture dosing unit that controls the concrete flow and can be managed with a PLC system. The peristaltic admixture pump delivers a output of 40 to 400 l/h, with pumping values ​​immediately displayed on the PLC screen.

The machine is available as a stationary (SD) or trailer-mounted (TD) pump. With its road-accessible chassis, transport and maneuvering on the construction site couldn't be easier.

Pressure

68 bar

Material Cylinder Diameter - Stroke Length

150/700 mm

Cycles

27

Maximum Aggregate Size

16 mm

Hopper Capacity

250/280 l
